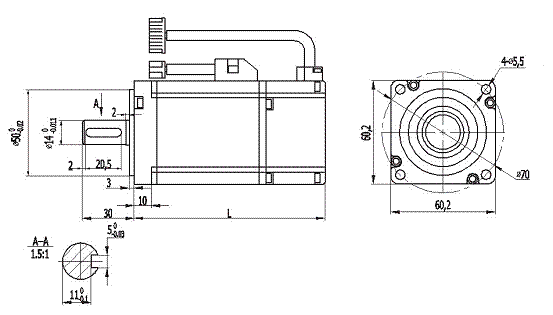

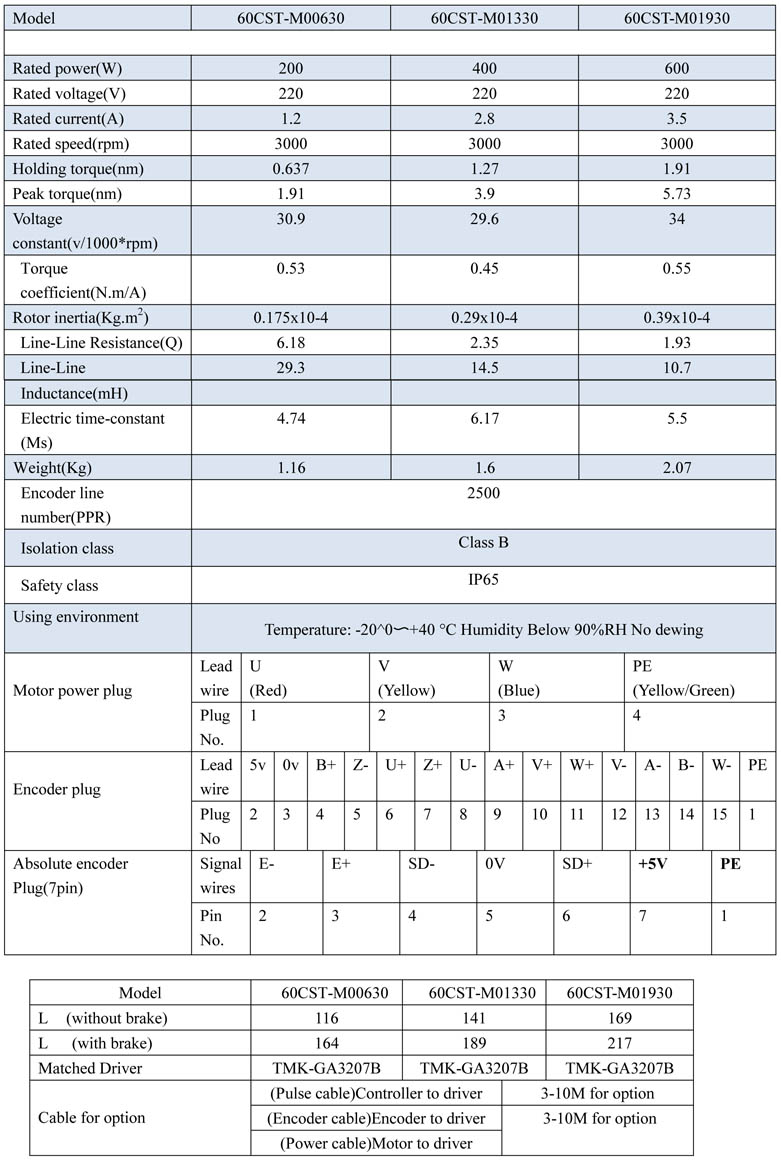

60 Series Servo Motor
60mm Flange
Torque from 1.27-4NM
Rated power from 0.72-1KW
2500ppr ,Middle/Low inertial
1) High speed and large torque
2) Smooth and stable
3) Low noisy and vibration
4) High accuracy
5) Easy for installation
6) Quality guarentee
S/N | Model | Series | Paramerter | Drive |
---|---|---|---|---|
1 | Servo motor60ST-M00630 | 60 | 200W,0.6NM,3000rpm | G2A3204A |
2 | Servo motor60ST-M01330 | 400W,1.37NM,3000rpm | G2A3204A | |
3 | Servo motor60ST-M01930 | 600W,1.9NM,3000rpm | G2A3204A | |
4 | Servo motor80ST-M02430 | 80 | 750W,2.4NM,3000rpm | G2A3222A |
5 | Servo motor80ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
6 | Servo motor80ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
7 | Servo motor90ST-M02430 | 90 | 750W,2.4NM,3000rpm | G2A3222A |
8 | Servo motor90ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
9 | Servo motor90ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
10 | Servo motor110ST-M04030 | 110 | 4NM,1.2KW,3000rpm | G2A3215A |
11 | Servo motor110ST-M05030 | 5NM,1.5KW,3000rpm | G2A3215A | |
12 | Servo motor110ST-M06020 | 6NM,1.2KW,3000rpm | G2A3215A | |
13 | Servo motor110ST-M06030 | 6NM,1.6KW,3000rpm | G2A3215A | |
14 | Servo motor130ST-M04025 | 130 | 4NM,1.0KW,2500rpm | G2A3208A |
15 | Servo motor130ST-M05025 | 5NM,1.3KW,2500rpm | G2A3215A | |
16 | Servo motor130ST-M06025 | 6NM,1.5KW,2500rpm | G2A3215A | |
17 | Servo motor130ST-M07725 | 7.7NM,2.0KW,2500rpm | G2A3222A | |
18 | Servo motor130ST-M10015 | 10NM,1.5KW,1500rpm | G2A3215A | |
19 | Servo motor130ST-M10025 | 10NM,2.6KW,2500rpm | K1BS25AA | |
20 | Servo motor130ST-M15015 | 15NM.2.3KW,1500rpm | G2A3222A | |
21 | Servo motor130ST-M15025 | 15NM,3.8KW,2500rpm | K1BS35AA | |
22 | Servo motor180ST-M17215 | 180 | 17.2NM,2.7KW,1500rpm | K1BS25AA |
23 | Servo motor180ST-M19015 | 19NM,3.0KW,1500rpm | G2A3230A | |
24 | Servo motor180ST-M21520 | 21.5NM,4.3KW,2000rpm | K1BS35AA | |
25 | Servo motor180ST-M35015 | 35NM,5.5KW,1500rpm | K1BS55AA | |
26 | Servo motor180ST-M48015 | 48NM,7.5KW,1500rpm | K1BS75AA |

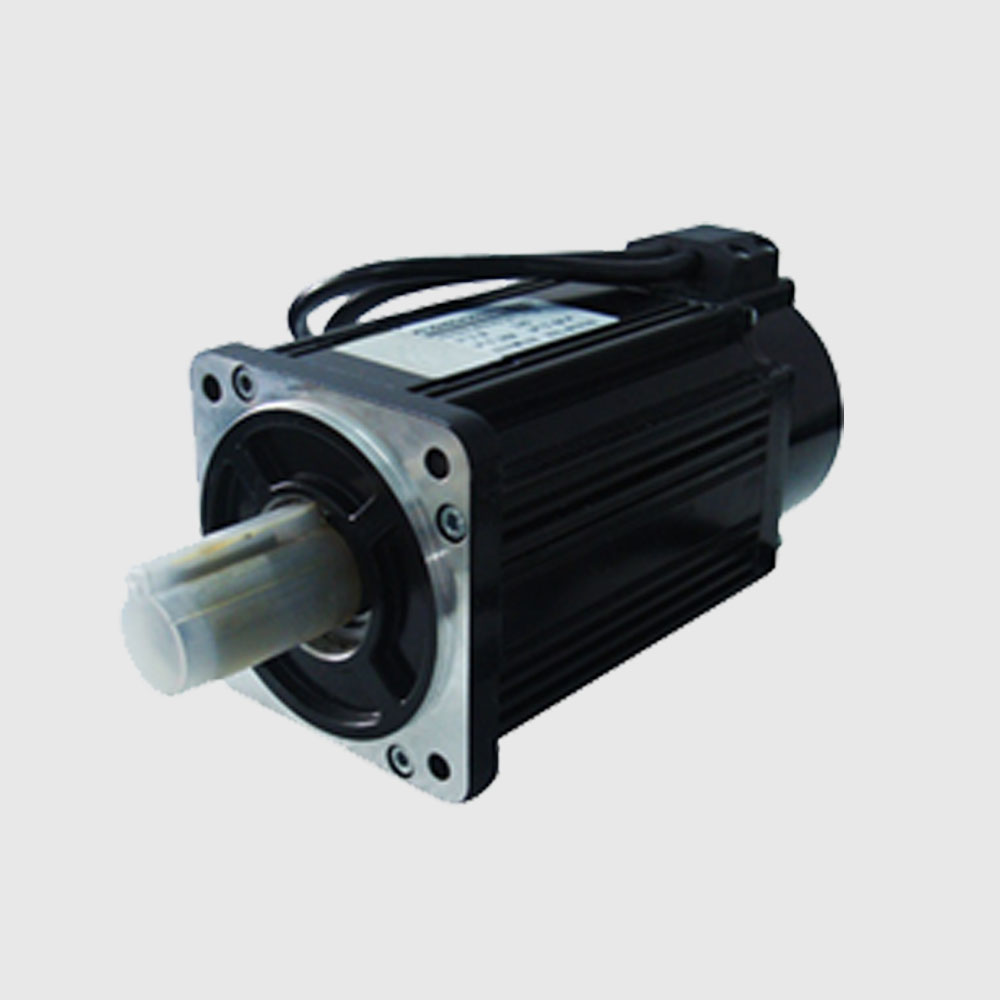

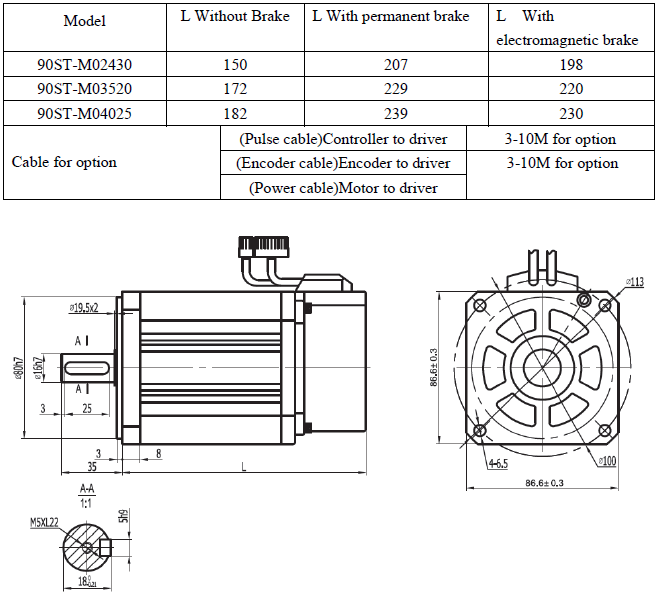

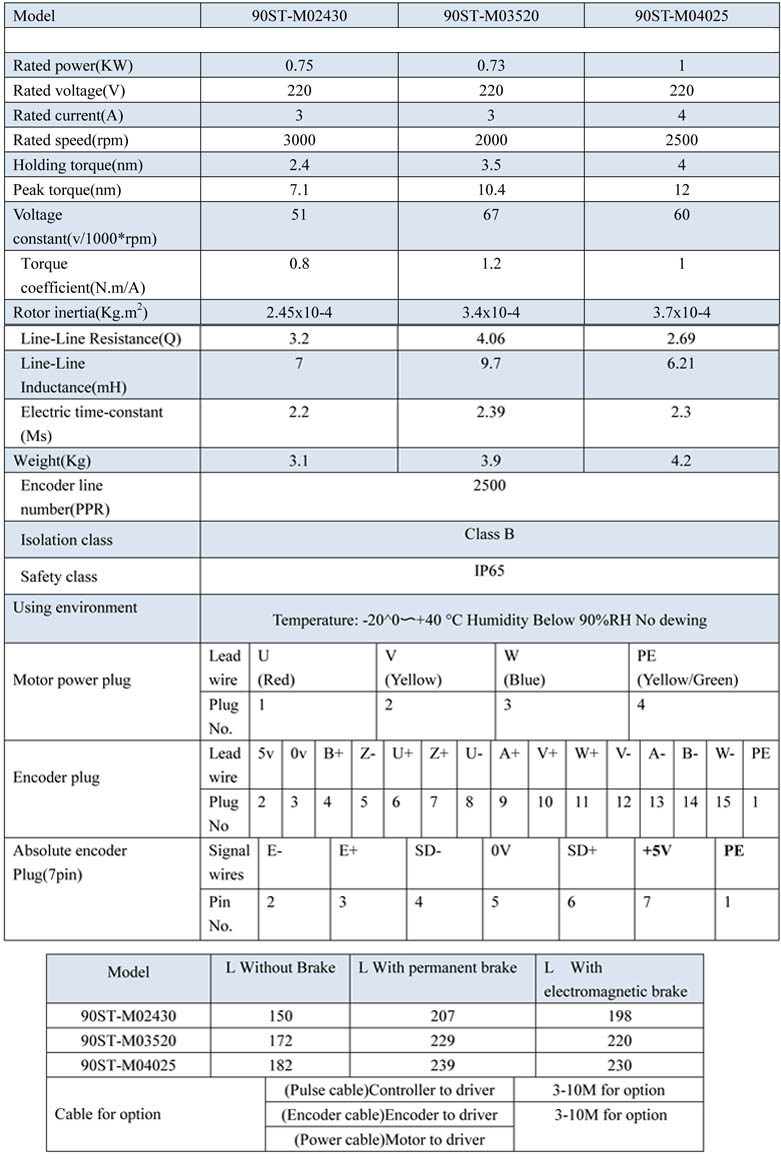

90 Series Servo Motor
90mm Flange
Torque from 1.27-4NM
Rated power from 0.72-1KW
2500ppr ,Middle/Low inertial
S/N | Model | Series | Paramerter | Drive |
---|---|---|---|---|
1 | Servo motor60ST-M00630 | 60 | 200W,0.6NM,3000rpm | G2A3204A |
2 | Servo motor60ST-M01330 | 400W,1.37NM,3000rpm | G2A3204A | |
3 | Servo motor60ST-M01930 | 600W,1.9NM,3000rpm | G2A3204A | |
4 | Servo motor80ST-M02430 | 80 | 750W,2.4NM,3000rpm | G2A3222A |
5 | Servo motor80ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
6 | Servo motor80ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
7 | Servo motor90ST-M02430 | 90 | 750W,2.4NM,3000rpm | G2A3222A |
8 | Servo motor90ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
9 | Servo motor90ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
10 | Servo motor110ST-M04030 | 110 | 4NM,1.2KW,3000rpm | G2A3215A |
11 | Servo motor110ST-M05030 | 5NM,1.5KW,3000rpm | G2A3215A | |
12 | Servo motor110ST-M06020 | 6NM,1.2KW,3000rpm | G2A3215A | |
13 | Servo motor110ST-M06030 | 6NM,1.6KW,3000rpm | G2A3215A | |
14 | Servo motor130ST-M04025 | 130 | 4NM,1.0KW,2500rpm | G2A3208A |
15 | Servo motor130ST-M05025 | 5NM,1.3KW,2500rpm | G2A3215A | |
16 | Servo motor130ST-M06025 | 6NM,1.5KW,2500rpm | G2A3215A | |
17 | Servo motor130ST-M07725 | 7.7NM,2.0KW,2500rpm | G2A3222A | |
18 | Servo motor130ST-M10015 | 10NM,1.5KW,1500rpm | G2A3215A | |
19 | Servo motor130ST-M10025 | 10NM,2.6KW,2500rpm | K1BS25AA | |
20 | Servo motor130ST-M15015 | 15NM.2.3KW,1500rpm | G2A3222A | |
21 | Servo motor130ST-M15025 | 15NM,3.8KW,2500rpm | K1BS35AA | |
22 | Servo motor180ST-M17215 | 180 | 17.2NM,2.7KW,1500rpm | K1BS25AA |
23 | Servo motor180ST-M19015 | 19NM,3.0KW,1500rpm | G2A3230A | |
24 | Servo motor180ST-M21520 | 21.5NM,4.3KW,2000rpm | K1BS35AA | |
25 | Servo motor180ST-M35015 | 35NM,5.5KW,1500rpm | K1BS55AA | |
26 | Servo motor180ST-M48015 | 48NM,7.5KW,1500rpm | K1BS75AA |

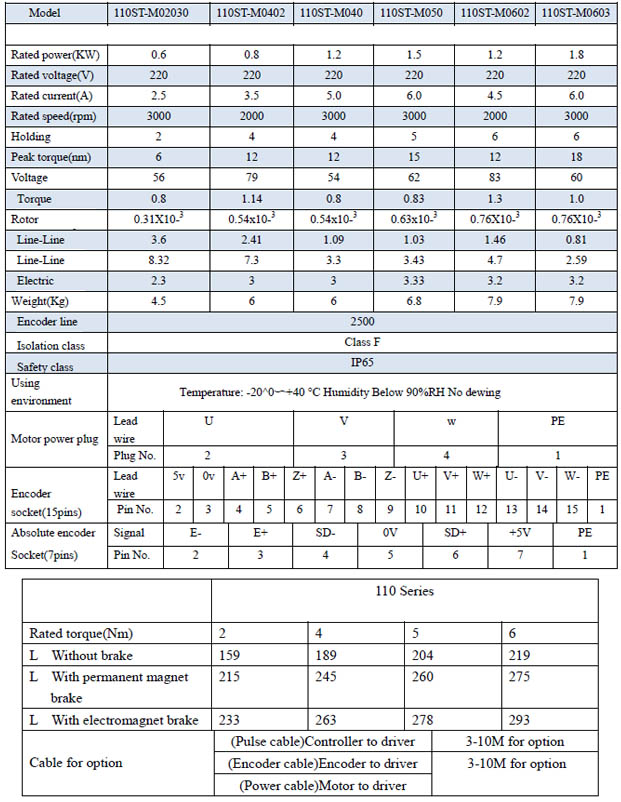

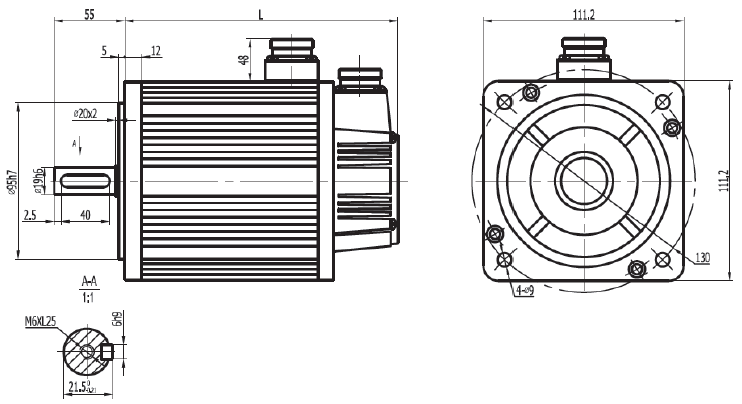

110 Series Servo Motor
110mm Flange
Torque From 0.8-1.0NM
Rated Power From 0.6-1.8KW
2500PPR Encoder
S/N | Model | Series | Paramerter | Drive |
---|---|---|---|---|
1 | Servo motor60ST-M00630 | 60 | 200W,0.6NM,3000rpm | G2A3204A |
2 | Servo motor60ST-M01330 | 400W,1.37NM,3000rpm | G2A3204A | |
3 | Servo motor60ST-M01930 | 600W,1.9NM,3000rpm | G2A3204A | |
4 | Servo motor80ST-M02430 | 80 | 750W,2.4NM,3000rpm | G2A3222A |
5 | Servo motor80ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
6 | Servo motor80ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
7 | Servo motor90ST-M02430 | 90 | 750W,2.4NM,3000rpm | G2A3222A |
8 | Servo motor90ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
9 | Servo motor90ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
10 | Servo motor110ST-M04030 | 110 | 4NM,1.2KW,3000rpm | G2A3215A |
11 | Servo motor110ST-M05030 | 5NM,1.5KW,3000rpm | G2A3215A | |
12 | Servo motor110ST-M06020 | 6NM,1.2KW,3000rpm | G2A3215A | |
13 | Servo motor110ST-M06030 | 6NM,1.6KW,3000rpm | G2A3215A | |
14 | Servo motor130ST-M04025 | 130 | 4NM,1.0KW,2500rpm | G2A3208A |
15 | Servo motor130ST-M05025 | 5NM,1.3KW,2500rpm | G2A3215A | |
16 | Servo motor130ST-M06025 | 6NM,1.5KW,2500rpm | G2A3215A | |
17 | Servo motor130ST-M07725 | 7.7NM,2.0KW,2500rpm | G2A3222A | |
18 | Servo motor130ST-M10015 | 10NM,1.5KW,1500rpm | G2A3215A | |
19 | Servo motor130ST-M10025 | 10NM,2.6KW,2500rpm | K1BS25AA | |
20 | Servo motor130ST-M15015 | 15NM.2.3KW,1500rpm | G2A3222A | |
21 | Servo motor130ST-M15025 | 15NM,3.8KW,2500rpm | K1BS35AA | |
22 | Servo motor180ST-M17215 | 180 | 17.2NM,2.7KW,1500rpm | K1BS25AA |
23 | Servo motor180ST-M19015 | 19NM,3.0KW,1500rpm | G2A3230A | |
24 | Servo motor180ST-M21520 | 21.5NM,4.3KW,2000rpm | K1BS35AA | |
25 | Servo motor180ST-M35015 | 35NM,5.5KW,1500rpm | K1BS55AA | |
26 | Servo motor180ST-M48015 | 48NM,7.5KW,1500rpm | K1BS75AA |

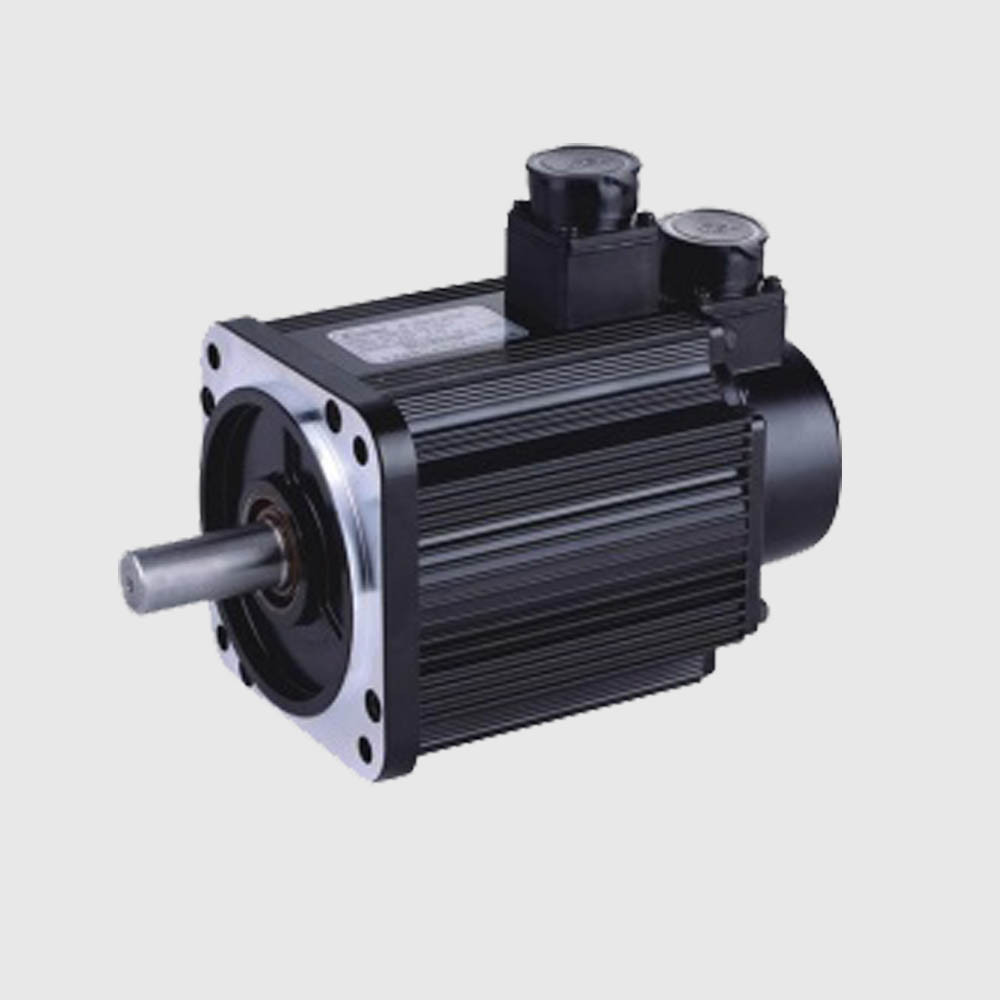

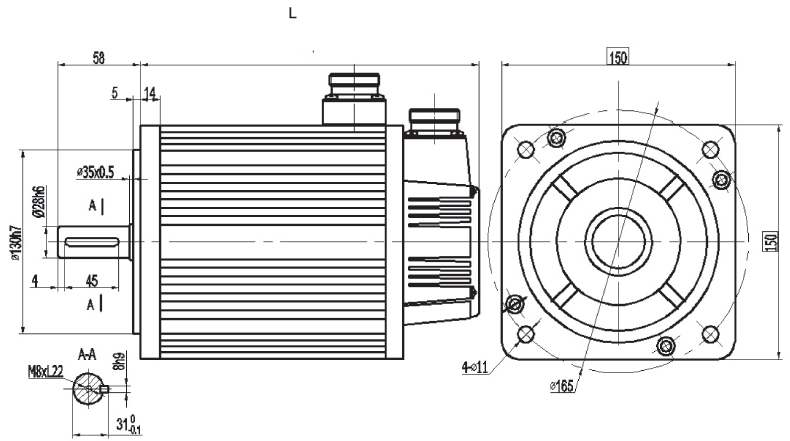

130 Series Servo Motor
130mm Flange
Torque From 4.0-13.5NM
Rated Power From 1.0-3.8KW
2500PPR Encoder
S/N | Model | Series | Paramerter | Drive |
---|---|---|---|---|
1 | Servo motor60ST-M00630 | 60 | 200W,0.6NM,3000rpm | G2A3204A |
2 | Servo motor60ST-M01330 | 400W,1.37NM,3000rpm | G2A3204A | |
3 | Servo motor60ST-M01930 | 600W,1.9NM,3000rpm | G2A3204A | |
4 | Servo motor80ST-M02430 | 80 | 750W,2.4NM,3000rpm | G2A3222A |
5 | Servo motor80ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
6 | Servo motor80ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
7 | Servo motor90ST-M02430 | 90 | 750W,2.4NM,3000rpm | G2A3222A |
8 | Servo motor90ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
9 | Servo motor90ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
10 | Servo motor110ST-M04030 | 110 | 4NM,1.2KW,3000rpm | G2A3215A |
11 | Servo motor110ST-M05030 | 5NM,1.5KW,3000rpm | G2A3215A | |
12 | Servo motor110ST-M06020 | 6NM,1.2KW,3000rpm | G2A3215A | |
13 | Servo motor110ST-M06030 | 6NM,1.6KW,3000rpm | G2A3215A | |
14 | Servo motor130ST-M04025 | 130 | 4NM,1.0KW,2500rpm | G2A3208A |
15 | Servo motor130ST-M05025 | 5NM,1.3KW,2500rpm | G2A3215A | |
16 | Servo motor130ST-M06025 | 6NM,1.5KW,2500rpm | G2A3215A | |
17 | Servo motor130ST-M07725 | 7.7NM,2.0KW,2500rpm | G2A3222A | |
18 | Servo motor130ST-M10015 | 10NM,1.5KW,1500rpm | G2A3215A | |
19 | Servo motor130ST-M10025 | 10NM,2.6KW,2500rpm | K1BS25AA | |
20 | Servo motor130ST-M15015 | 15NM.2.3KW,1500rpm | G2A3222A | |
21 | Servo motor130ST-M15025 | 15NM,3.8KW,2500rpm | K1BS35AA | |
22 | Servo motor180ST-M17215 | 180 | 17.2NM,2.7KW,1500rpm | K1BS25AA |
23 | Servo motor180ST-M19015 | 19NM,3.0KW,1500rpm | G2A3230A | |
24 | Servo motor180ST-M21520 | 21.5NM,4.3KW,2000rpm | K1BS35AA | |
25 | Servo motor180ST-M35015 | 35NM,5.5KW,1500rpm | K1BS55AA | |
26 | Servo motor180ST-M48015 | 48NM,7.5KW,1500rpm | K1BS75AA |

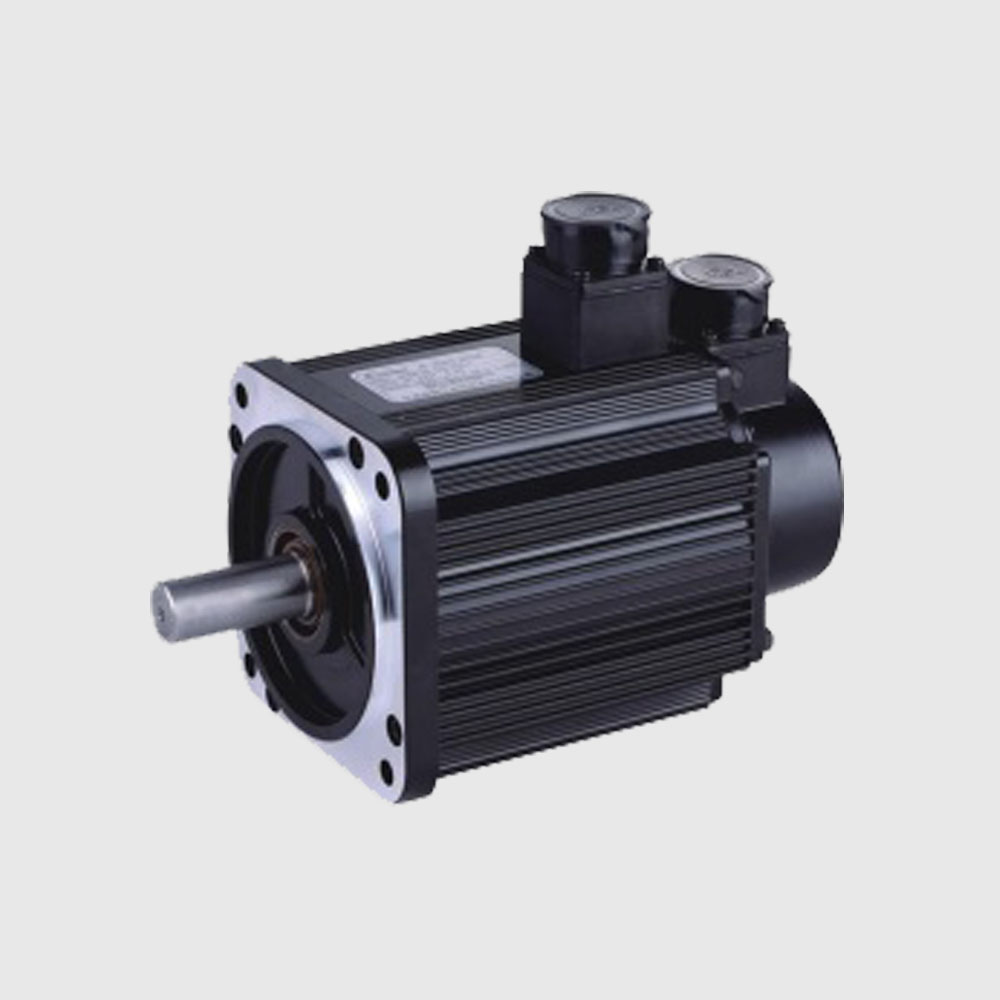

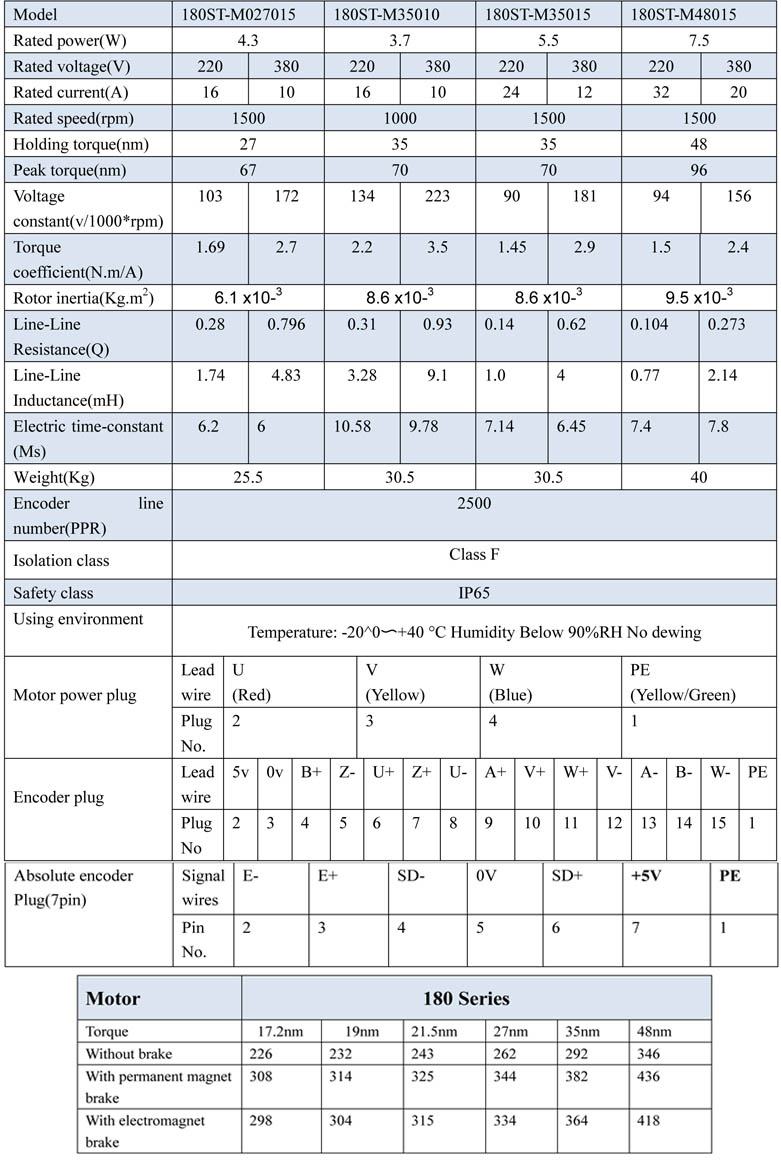

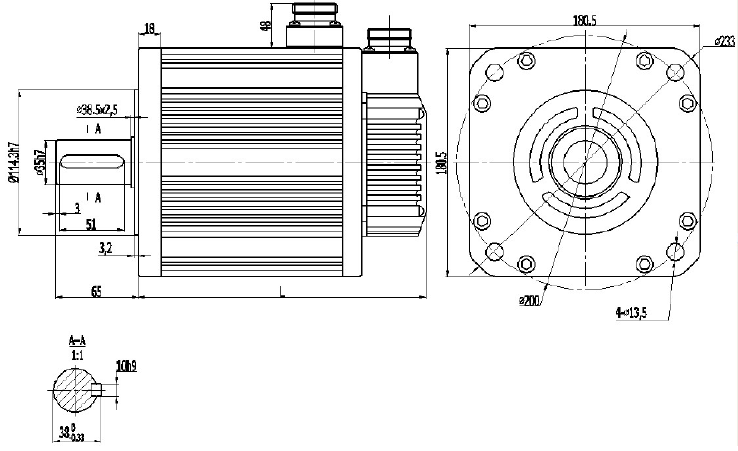

180 Series Servo Motor
180mm Flange
Torque From 17.2-48NM
Rated Power From 2.7-7.5KW
2500PPR Encoder
S/N | Model | Series | Paramerter | Drive |
---|---|---|---|---|
1 | Servo motor60ST-M00630 | 60 | 200W,0.6NM,3000rpm | G2A3204A |
2 | Servo motor60ST-M01330 | 400W,1.37NM,3000rpm | G2A3204A | |
3 | Servo motor60ST-M01930 | 600W,1.9NM,3000rpm | G2A3204A | |
4 | Servo motor80ST-M02430 | 80 | 750W,2.4NM,3000rpm | G2A3222A |
5 | Servo motor80ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
6 | Servo motor80ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
7 | Servo motor90ST-M02430 | 90 | 750W,2.4NM,3000rpm | G2A3222A |
8 | Servo motor90ST-M04025 | 4NM,1.0KW,2500rpm | G2A3208A | |
9 | Servo motor90ST-M03520 | 750W,3.5NM,2000rpm | G2A3208A | |
10 | Servo motor110ST-M04030 | 110 | 4NM,1.2KW,3000rpm | G2A3215A |
11 | Servo motor110ST-M05030 | 5NM,1.5KW,3000rpm | G2A3215A | |
12 | Servo motor110ST-M06020 | 6NM,1.2KW,3000rpm | G2A3215A | |
13 | Servo motor110ST-M06030 | 6NM,1.6KW,3000rpm | G2A3215A | |
14 | Servo motor130ST-M04025 | 130 | 4NM,1.0KW,2500rpm | G2A3208A |
15 | Servo motor130ST-M05025 | 5NM,1.3KW,2500rpm | G2A3215A | |
16 | Servo motor130ST-M06025 | 6NM,1.5KW,2500rpm | G2A3215A | |
17 | Servo motor130ST-M07725 | 7.7NM,2.0KW,2500rpm | G2A3222A | |
18 | Servo motor130ST-M10015 | 10NM,1.5KW,1500rpm | G2A3215A | |
19 | Servo motor130ST-M10025 | 10NM,2.6KW,2500rpm | K1BS25AA | |
20 | Servo motor130ST-M15015 | 15NM.2.3KW,1500rpm | G2A3222A | |
21 | Servo motor130ST-M15025 | 15NM,3.8KW,2500rpm | K1BS35AA | |
22 | Servo motor180ST-M17215 | 180 | 17.2NM,2.7KW,1500rpm | K1BS25AA |
23 | Servo motor180ST-M19015 | 19NM,3.0KW,1500rpm | G2A3230A | |
24 | Servo motor180ST-M21520 | 21.5NM,4.3KW,2000rpm | K1BS35AA | |
25 | Servo motor180ST-M35015 | 35NM,5.5KW,1500rpm | K1BS55AA | |
26 | Servo motor180ST-M48015 | 48NM,7.5KW,1500rpm | K1BS75AA |

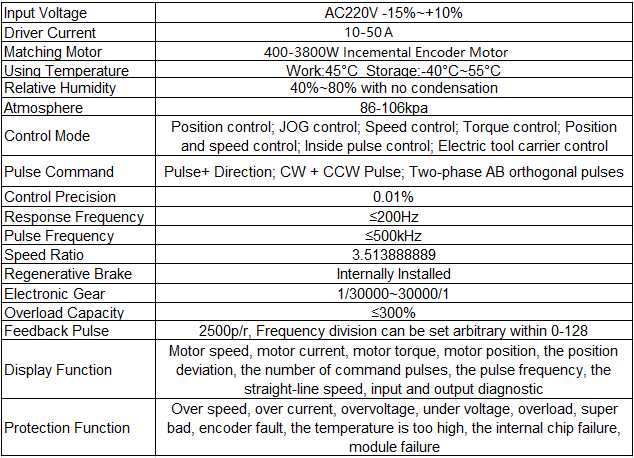

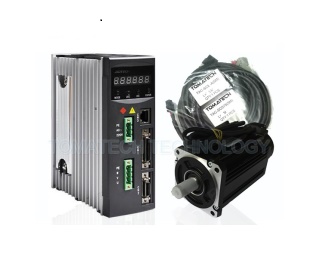

Economic AC Servo Driver
Model: SM1D10A,SM1D20A ,SM1D30A, SM1D50A
Economic AC Servo Driver
Easy Tuning
Suit For 400-3800W Incremental Encoder Motor.
Easy setting,aLL-in-one control
Harmonic suppression;positioning stabilization reduction
Vibration control,CE/ISO improved
SM1DxxA is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of SD series servo driver. Adhering to the series SD series servo driver excellent quality, more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.
SM1D10A Servo Controller Feature:
- Fully retain the advantages characteristics of SD series servo driver.
- AC sine wave control, torque smoothly and without pulsation.
- 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.
- Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.
- High-speed arithmetic processing FPGA, maximum motor speed up to 5000RPM.
- A rich complete set of parameters that can be configured to run different operating modes, so meet different demand.
- Position, speed, torque control mode, using widely.
- Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.
- Up to three times the overload design, with a load capacity greater.
- Perfect protection: over current, overvoltage, overheating and encoder failure, etc.
- Perfect condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse and so on.

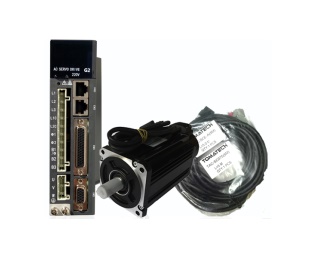

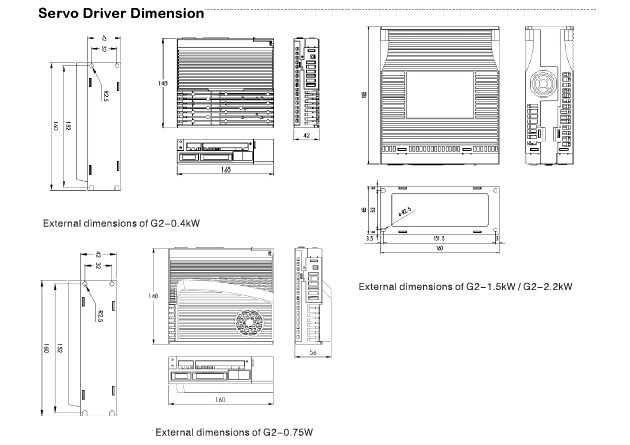

G2 Series Servo Driver
Model: G2A3204A ,G2A3208A , G2A3215A ,G2A3222A ,G2A3230A
High Quality AC Servo Driver
Suit For 200-3000W Servo Motor
1,Adopt new generation digital signal processor (DSP) and intelligent module (IPM) , Advanced control arithmetic. to realize servo motor 's high
accuracy control
2, Integrated smart PID intelligent control arithmetic amd PDFF controller , Greatly enhanced position and speed control speed & accuracy
3, Support encoder signal frequency division.
4, Support load monitor , support torque feedforward compensation .enhance dynamic response ability
5, Inertial recongnize

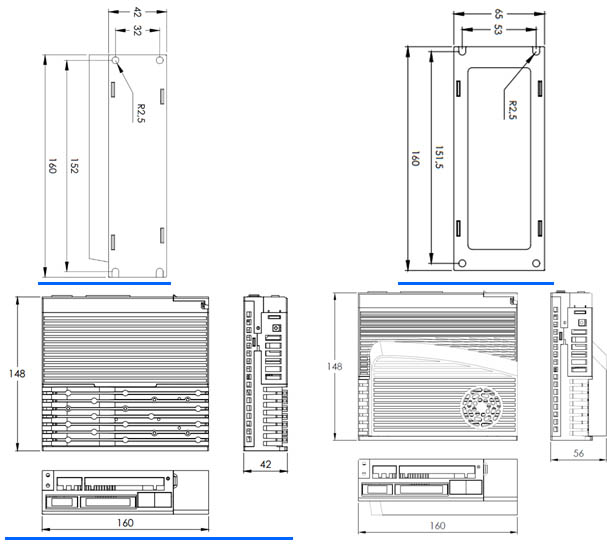

K1 Series Driver
Model: K1AS04__,K1AS08__ ,K1AS15__
High Performance AC Servo Driver
Auto Tuning
Suit For 400-1500W Motor
Specifications:
- Easy setting,aLL-in-one control
- Harmonic suppression;positioning stabilization reduction
- Vibration control,CE/ISO improved
- SM1DxxA is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of SD series servo driver. Adhering to the series SD series servo driver excellent quality, more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.
SM1D10A Servo Controller Feature:
- Fully retain the advantages characteristics of SD series servo driver.
- AC sine wave control, torque smoothly and without pulsation.
- 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.
- Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.
- High-speed arithmetic processing FPGA, maximum motor speed up to 5000RPM.
- A rich complete set of parameters that can be configured to run different operating modes, so meet different demand.
- Position, speed, torque control mode, using widely.
- Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.
- Up to three times the overload design, with a load capacity greater.
- Perfect protection: over current, overvoltage, overheating and encoder failure, etc.
- Perfect condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse and so on.
Control mode | Position control, JOG running, speed contact, etc. | |
---|---|---|
Encoder feedback | 2500-line incremental standard and 17 bit incremental encoders | |
Use conditions | Ambient/storage temperature | Ambient temperature: 0~+50℃; storage temperature: -20~+85℃ |
Ambient/storage humidity | Under 90%RH (no freezing or condensation) | |
Vibration/impact resistance strength | 4.9m/s2/19.6m/s2 | |
Analog speed reference input | Reference voltage | DC±10V |
Input impedance | Appx. 20KΩ | |
Analog torque reference input | Reference voltage | DC±10V |
Input impedance | Appx. 20KΩ | |
IO input signal | Point | 8 points |
Function (distributable) | Servo ON (/S-ON), P action (/P-CON), positive-side over travel prohibited (P-OT), negative-side over travel prohibited(N-OT), alarm reset (/ALM-RST), positive-side torque limit (/P-CL), negative-side torque limit (/N-CL), position deviation clear (/CLR), internal set speed switch, etc. | |
Distribution of above signals and change of positive/negative logics are available | ||
IO output | Point | 6 points |
Signal | Function (distributable) | Servo alarm (ALM), position complete (/COIN), velocity compliance detection (/V-CMP), servo motor rotation detection (/TGON), servo ready (/S-RDY), torque limit detection (/CLT), breaker (/BK), encoder zero point output (PGC) |
Distribution of above signals and change of positive/negative logics are available | ||
Encoder divided frequency output | A-phase, B-phase and C-phase: linear drive output; divided pulse count: can be set freely | |
RS-485 communication | Communication protocol | MODBUS |
1:N communication | N = 127 stations at maximum | |
Axial address setting | Set by parameters | |
CAN communication | Communication protocol | CANOpen (DS301 + DS402 guild regulations) |
1:N communication | N = 127 stations at maximum | |
Axial address setting | Set by parameters | |
Display functions | CHARGE indicator, 7-segment digital tube 5 bit | |
Regeneration processing | Built-in or external regeneration resistor (optional) | |
Overtravel (OT) prevention function | Dynamic breaker (DB) stop, deceleration stop or free running stop during P-OT or N-OT input action | |
Protection functions | Overcurrent, overvoltage, undervoltage, overload, overspeed, regeneration failure, encoder feedback error, etc. | |
Monitoring functions | Rotation speed, current position, reference pulse accumulation, positional deviation, motor current, operating status, input and output terminal signal, etc. | |
Auxiliary functions | Gain adjustment, alarm record, JOG running, origin search, inertia detection, etc. | |
Intelligent function | Built-in gain auto tuning function | |
Applicable load inertia | Less than 5 times of the motor inertia | |
Position control | Feed-forward compensation | 0~100% (set unit: 1%) |
Input pulse type | Sign + pulse sequence, CW+CCW pulse sequence, 90 ° phase difference two-phase pulse (A phase + B phase) | |
Input pulse type | Linear drive and open connector supported | |
Maximum input pulse frequency | Linear drive: | |
Sign + pulse sequence, CW+CCW pulse sequence: 500Kpps | ||
90 ° phase difference two-phase pulse (A phase + B phase): 500Kpps | ||
Open connector: | ||
Sign + pulse sequence, CW+CCW pulse sequence: 200Kpps | ||
90 ° phase difference two-phase pulse (A phase + B phase): 200Kpps |
