Servo & Stepper - Motor & Drives
42 Series Stepper Motor
42 Series Two Phase Stepper Motor

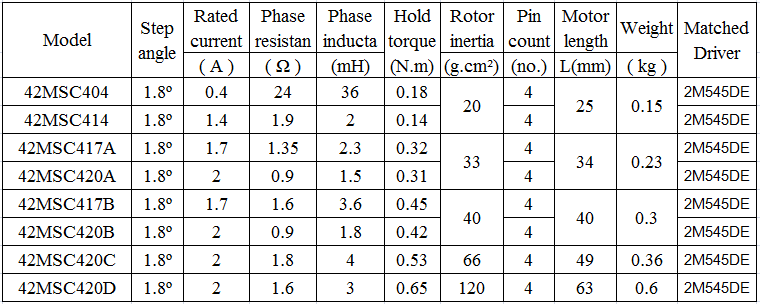

42 Series Motor Slection Table:
57 Series Stepper Motor
* 57 Series Two Phase Stepper Motor
* 57 Series Three Phase Stepper Motor

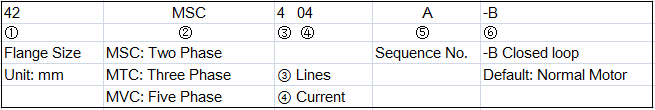

Stepper Naming Method

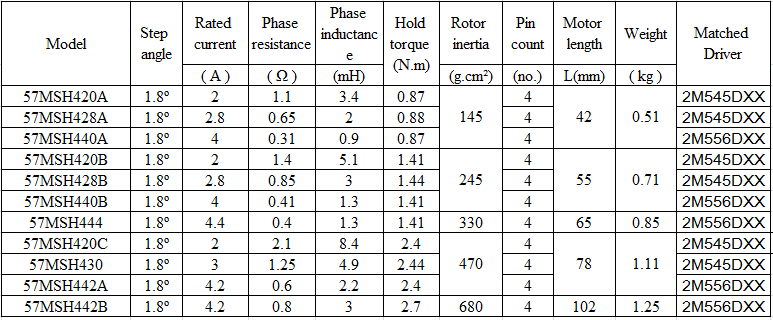

57 Series Two Phase Stepper Motor Selecton Table:

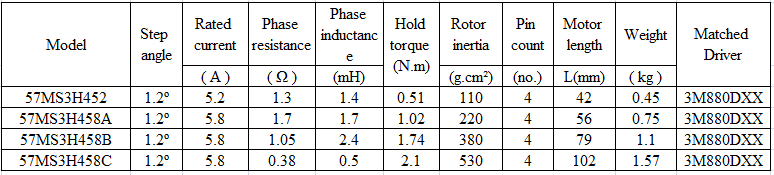

57 Series Three Phase Stepper Motor Selection Table:
86 Series Stepper Motor
*86 Series Two Phase Stepper Motor
*86 Series Three Phase Stepper Motor

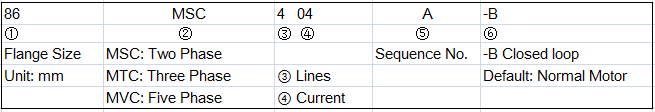

Stepper Motor Naming Method

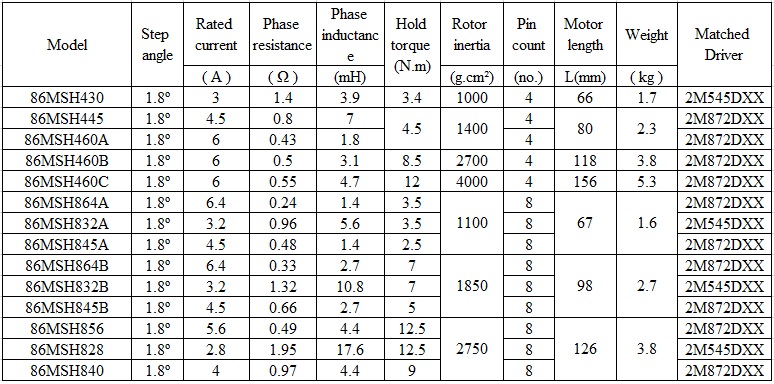

86 Series Two Phase Motor Slection Table

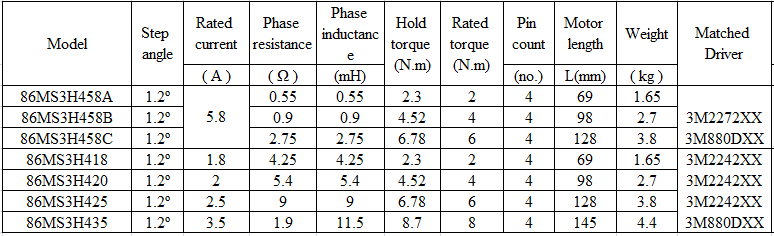

86 Series Three Phase Motor Selection Table
110 Series Stepper Motor
*110 Series Two Phase Stepper Motor
*110 Series Three Phase Stepper Motor
Stepper Motor Naming Method:

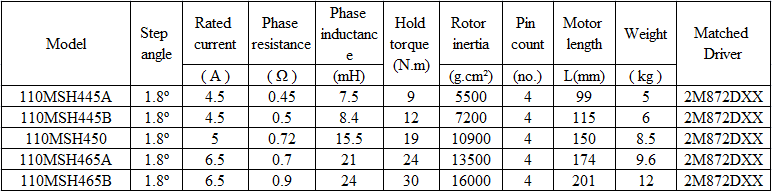

110 Series Two Phase Motor Slection Table

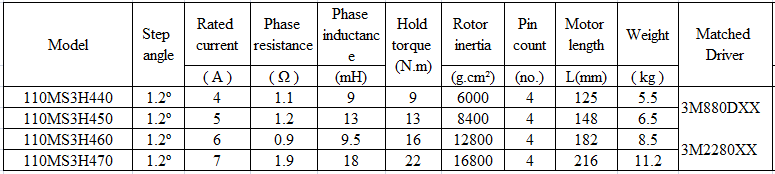

110 Serires Three Phase Motor Selection Table:
2 Phase 2M545D- Stepper Driver
Standard Type： 2M545D
Economic Type： 2M545D-E
DC20-52V Input stepper driver.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
Product features:
1. Adopt high speed motion control DSP CPU. 2s self-adaptive after booting. suit for 42,57mm 2phase motors.
2. DC20~52V input
3. Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4. Peak current in working condition is 3-6.5A. Output current has 8 grades. Current resolution is 0.25A.
5. Has half-current ,over voltage,over current protection and faults diagnose functions.
6. Automatic stanby fuction. after 1s will be half current
7. Position holding after power off. driver can save motor position
8. some control signals or logic can be customized
Advantages:
Reliable quolity More stable Compact size Easy using Low cost Support OEM/ODM
Disadvantages:
Only accept 5v input , If connect to PLC should connect a 2K resistance.
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
1.0 |
- |
4.5 |
A |
|
Power Voltage |
20 |
20-40 |
52 |
VDC |
|
Low voltage |
20 |
VDC |
||
|
Over voltage |
52 |
VDC |
||
|
Signal voltage |
3 |
3.3 |
6.25 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
200K |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
Matched Motor
|
Recommend Motor |
42mm |
57mm |
60mm |
86mm |
|
Motor Speed |
High |
Low/mid/high |
Low/mid/high |
Low/mid |
|
Recommend voltage |
DC:24V |
DC24/24-36/36 |
DC24/24-36/36 |
DC24-48 |
|
Input Power |
20-50 is ok, driver’s current setting =1.6 motor’s current |
|||
2 Phase 2M880D - Stepper Driver
Standard Type： 2M880D
Economic Type： 2M880D-E
DC48-72V Input stepper driver.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
1. Adopt high speed motion control DSP CPU. 2s self-adaptive after booting. suit for 57,60,86/110mm 2phase motors.
2. DC48~72V input
3. Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4. Peak current in working condition is 1.0-8.0A. Output current has 8 grades. Current resolution is 0.25A.
5. Has half-current ,over voltage,over current protection and faults diagnose functions.
6. Automatic stanby fuction. after 1s will be half current
7. Position holding after power off. driver can save motor position
8. some control signals or logic can be customized
9. Accept 5-24v pulse input. if connect to PLC no need add resistance
Advantages:
Reliable quolity More stable Compact size Easy using Low cost Support OEM/ODM
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
1.0 |
- |
4.5 |
A |
|
Power Voltage |
20 |
20-40 |
52 |
VDC |
|
Low voltage |
20 |
VDC |
||
|
Over voltage |
52 |
VDC |
||
|
Signal voltage |
3 |
5--24 |
28 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
2M |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
|

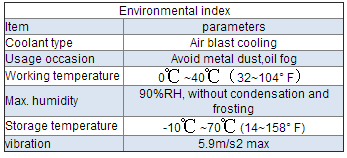

Item |
parameters |
|
Coolant type |
Air blast cooling |
|
Usage occasion |
Avoid metal dust,oil fog |
|
Working temperature |
0℃ ~40℃（32~104° F） |
|
Max. humidity |
90%RH, without condensation and frosting |
|
Storage temperature |
-10℃ ~70℃ (14~158° F) |
|
vibration |
5.9m/s2 max |

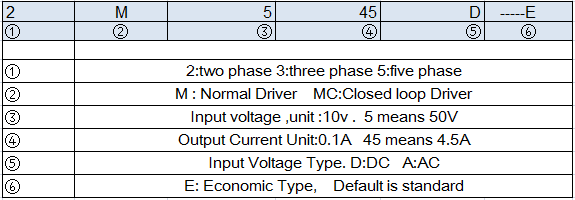

2 Phase Driver 2M2280A
Standard Type： 2M2280A
Economic Type： 2M2280A-E
AC220V Input stepper driver， No need SMPS ,Transformer.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
1.Adopt high speed motion control CPU. 2s self-adaptive after booting. suit for 85/86/90/110/130mm 2phase motors.
2.AC or DC and wide voltage range input:AC85~265V . No need transformer
3.Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4.Peak current in working condition is 1-8.0 A. Output current has 8 grades. Current resolution is 0.5A.
5.Has half-current ,over voltage,over current protection and faults diagnose functions.
6.Automatic stanby fuction. after 1s will be half current
7.Position holding after power off. driver can save motor position
8.some control signals or logic can be customized
Advantages:
Reliable quolity - More stable - Compact size - Easy using - Low cost - Support OEM/ODM
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
0.4 |
- |
8.0 |
A |
|
Power Voltage |
85 |
220 |
265 |
VAC |
|
Low voltage |
82 |
VAC |
||
|
Over voltage |
265 |
VAC |
||
|
Signal voltage |
3 |
5--24 |
28 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
2M |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
|
Recommend Motor |
86mm |
110mm |
130mm |
|
|
Motor Speed |
high |
Low/mid/high |
||
|
Recommend voltage |
AC110-220V |
AC220V |
||
|
Input Power |
85-220VAC |
|||
|
|
|
|
||

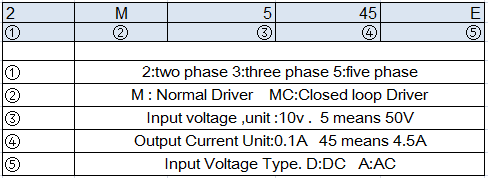

3 Phase Driver - 3M880A
Standard Type： 3M880A
Economic Type： 3M880A-E
AC20-80V Input stepper driver.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
Product Features:
1.Adopt high speed motion control CPU. 2s self-adaptive after booting. suit for 85/86/90/110/130mm 3phase motors.
2.AC wide voltage range input:20~80V .
3.Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4.Peak current in working condition is 1-8.0A. Output current has 8 grades. Current resolution is 0.5A.
5.Has half-current ,over voltage,over current protection and faults diagnose functions.
6.Automatic stanby fuction. after 1s will be half current
7.Position holding after power off. driver can save motor position
8.some control signals or logic can be customized
Advantages:
Reliable quolity - More stable - Compact size - Easy using - Low cost - Support OEM/ODM
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
1.0 |
- |
8.0 |
A |
|
Power Voltage |
20 |
36 |
80 |
VAC |
|
Low voltage |
17 |
VAC |
||
|
Over voltage |
85 |
VAC |
||
|
Signal voltage |
3 |
5--24 |
28 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
200K |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
Suit for 42/57/85/110mm rated current less than 7A
3 Phase Driver -3M2242
Standard Type： 3M2242A
Economic Type： 3M2242A-E
AC220V Input stepper driver， No need SMPS ,Transformer.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
Product Features:
1.Adopt high speed motion control CPU. 2s self-adaptive after booting. suit for 86/110 mm 3phase motors.
2.AC wide voltage range input:AC85~265V . No need transformer
3.Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4.Peak current in working condition is 1-4.2A. Output current has 8 grades. Current resolution is 0.5A.
5.Has half-current ,over voltage,over current protection and faults diagnose functions.
6.Automatic stanby fuction. after 1s will be half current
7.Position holding after power off. driver can save motor position
8.some control signals or logic can be customized
Advantages:
Reliable quolity - More stable - Compact size - Easy using - Low cost - Support OEM/ODM
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
1.0 |
- |
4.2 |
A |
|
Power Voltage |
85 |
220 |
265 |
VAC |
|
Low voltage |
85 |
VAC |
||
|
Over voltage |
265 |
VAC |
||
|
Signal voltage |
3 |
3.3 |
6.25 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
200K |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
Matched Motor:
Suit for 86/110 mm rated power less than 4.2A 3 phase motors
3 Phase Driver -3M2285
Standard Type： 3M2285A
Economic Type： 3M2285A-E
AC220V Input stepper driver， No need SMPS ,Transformer.
Cooperate with US company, Based on DSP ,adopt new software algorithm. can get excellent torque/speed characteristic
Product Features:
1.Adopt high speed motion control CPU. 2s self-adaptive after booting. suit for 42/57/86/110/130mm 3phase motors.
2.AC wide voltage range input:AC85~265V . No need transformer
3.Has 16Microstep sub-divide options. Max. step quantity is 51200P/R.
4.Peak current in working condition is 1-8.5A. Output current has 8 grades. Current resolution is 0.5A.
5.Has half-current ,over voltage,over current protection and faults diagnose functions.
6.Automatic stanby fuction. after 1s will be half current
7.Position holding after power off. driver can save motor position
8.some control signals or logic can be customized
9.Accept 24v pulse signal, if connect to PLC, no need add resistance
Advantages:
Reliable quolity - More stable - Compact size - Easy using - Low cost - Support OEM/ODM
|
Electrical specification |
||||
|
Item |
Min. |
Typical Value |
Max. |
Unit |
|
Peak current |
1.0 |
- |
8.5 |
A |
|
Power Voltage |
85 |
220 |
265 |
VAC |
|
Low voltage |
85 |
VAC |
||
|
Over voltage |
265 |
VAC |
||
|
Signal voltage |
3 |
3.3-24 |
28 |
VDC |
|
Signal current |
7 |
10 |
16 |
MA |
|
Pulse width |
0 |
- |
2M |
HZ |
|
Isolation resistance |
500 |
- |
- |
Ω |
Matched Motor:
Suit for 42/57/86/110/130 mm rated power less than 8.5A 3 phase motors
