Vaccum Hopper Loader_Granules Loader
Hopper Vaccum Loader
Name: Vaccum Hopper Loader
Product name: Granule Feeding Machine
Application: Plastic Material Loading
Brand Name: HYNAAR
Voltage: 220V/380V/Customized
Type: Brush / Induction
Machine: Auto Feeding Machine
Conveying capacity: 300-1500kg/h
Power(W): 0.75~7.5 KW
Weight:12- 60 kg
Warranty:1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Construction works
After-sales Service Provided: Engineers available to service, Online support, Video technical support
Used for: Molding Injection Machine
Usage:Plastic Ganules Conveying Loading Machine

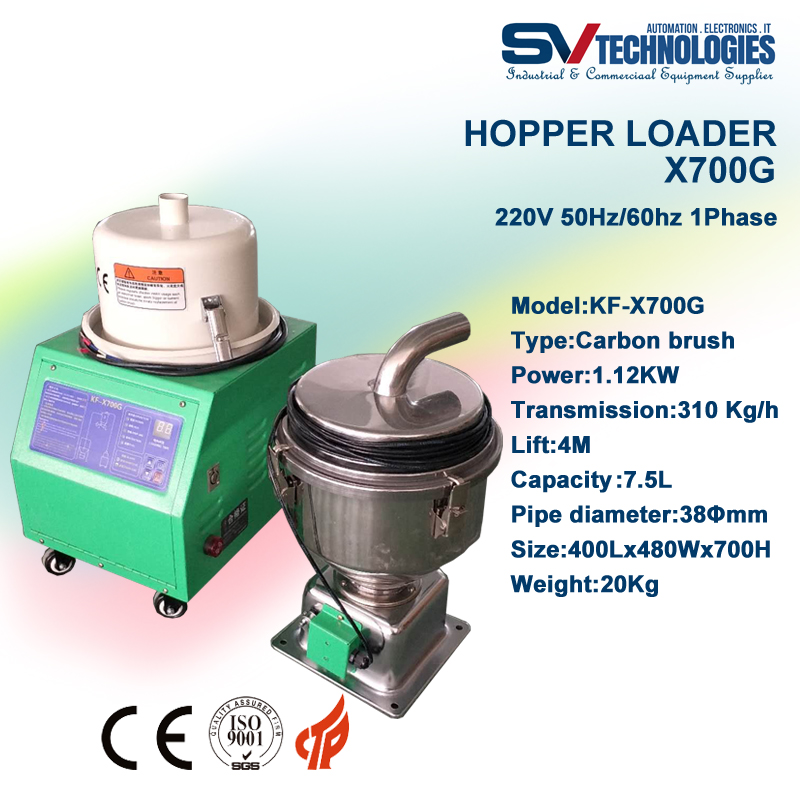

Hopper Loader:
SV Technologies Hopper loader is widely used in the raw material conveying industry of injection molding machines, extruders, and other equipment. When there is a lack of material in the bin of the plastic central feeding system, it will give a signal to the hopper loader. Hopper loader USES the principle of pumping to convey the plastic raw materials to the injection molding machine barrel when the material reaches a certain degree, the hopper loading will stop, until the material is not enough to convey again. Is to achieve full automation of production of auxiliary equipment.
Perfect structure design
All open design structure, the maintenance of the floor type fan station, easy to control, the working status of the display.
Humanized alarm standard high-frequency flashing light alarm device, when the lack of material or fault, to avoid the due to not the timely lifting of the warning caused by the environment of the workshop by the high pitched buzzer alarm generated noise annoyance and pollution, influence staff's normal work.
The microcomputer control system can be used to accurately control the operation of the operating panel configuration indicator light, can clearly understand the operation of the machine.
Microprocessor memory using EEPROM, not due to power failure or other reasons for the loss of set information, can be permanently saved.
Free with the combination
System by 1-3 ceiling hopper and a host of maintenance-free fan control station combined into a small central feeding conveying system or used alone blower station and a suction hopper for transportation of raw materials.
Efficient automated operation
Quickly and clean will plastic raw materials are sent to the molding machine hopper, drying equipment, and storage silo, timely and accurate plastic raw materials transported to the designated location, can ensure the continuous production process.
To avoid the lack of material caused by production, production workshop without raw materials scattered phenomenon, improve the work site clean and safety hazards, while eliminating the need for human resources.
Humanization of cleaning and maintenance
With a separate filter body, clean up the convenient and effective reduction of dust blocking high-pressure fan, reduce the load of the wind turbine.
Stainless steel hopper and hopper filter design, clean and convenient, avoid the two pollutions of raw materials.
Model | SV-X300G | |
Voltage | 220V 50Hz/60hz 1Phase | |
Type | Carbon brush | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 300 |
Lift | M | 3.5 |
Capacity | L | 7.5 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 390 |
W/mm | 390 | |
H/mm | 590 | |
Weight | kg | 12 |
Model | SV-X800G | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 450 |
Lift | M | 4 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 420 |
W/mm | 460 | |
H/mm | 700 | |
Weight | kg | 57 |
Model | SV-X800G2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 590 |
Lift | M | 5 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 500 |
W/mm | 400 | |
H/mm | 720 | |
Weight | kg | 76 |
Model | SV-X900G | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 450 |
Lift | M | 4 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 55 |
Model | SV-X900G2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 500 |
Lift | M | 4 |
Capacity | L | 24 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 58 |
Model | SV-X900G3 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 2.24 |
Transmission capacity | kg/h | 590 |
Lift | M | 5 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 540 |
W/mm | 560 | |
H/mm | 1230 | |
Weight | kg | 66 |
Model | SV-X900G5 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 3.73 |
Transmission capacity | kg/h | 820 |
Lift | M | 5 |
Capacity | L | 24 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 540 |
W/mm | 620 | |
H/mm | 1230 | |
Weight | kg | 89 |
Model | SV-X900G7.5 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 5.6 |
Transmission capacity | kg/h | 960 |
Lift | M | 5 |
Capacity | L | 51 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 580 |
W/mm | 600 | |
H/mm | 1600 | |
Weight | kg | 93 |
Model | SV-X900G10 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 7.5 |
Transmission capacity | kg/h | 1300 |
Lift | M | 5 |
Capacity | L | 51 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 580 |
W/mm | 600 | |
H/mm | 1600 | |
Weight | kg | 101 |
Model | SV-X900G2-2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 500 |
Lift | M | 4 |
Capacity | L | 12×2 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 61 |
Hopper Powder Loader
Name: Powder Hopper Loader
Application: Powder conveying
Brand Name: HYNAAR
Voltage: 220V/380V/Customized
Type: Brush / Induction
Machine: Auto Feeding Machine
Conveying capacity: 300-1500kg/h
Power(W): 0.75~7.5 KW
Weight:12- 60 kg
Warranty:1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair , Construction works
After-sales Service Provided: Engineers available to service, Online support, Video technical support
Used for: Chemical Mnufacturing, Injection Molding Machine
Usage:Plastic / Chemical Conveying Loading Machine
Powder Loader Special Features:
1.This powder auto loaders are particularly used for conveying powder materials, also suitable for all kinds of plastic pellets, granules and flakes mixture.
2.Main machine separate from the hopper, easy and safe to operate.
3.Stainless steel hopper ensuring no material pollution,easy to clean.
4.Microcomputer touch-type control, easy and simple to operate.
5.Auto alarm for overload and lack of material.
6.High capacity, easy to be used for production line.
7.High quality comes in long service life.
Perfect structure design
All open design structure, the maintenance of the floor type fan station, easy to control, the working status of the display.
Humanized alarm standard high-frequency flashing light alarm device, when the lack of material or fault, to avoid the due to not the timely lifting of the warning caused by the environment of the workshop by the high pitched buzzer alarm generated noise annoyance and pollution, influence staff's normal work.
The microcomputer control system can be used to accurately control the operation of the operating panel configuration indicator light, can clearly understand the operation of the machine.
Microprocessor memory using EEPROM, not due to power failure or other reasons for the loss of set information, can be permanently saved.
Free with the combination
System by 1-3 ceiling hopper and a host of maintenance-free fan control station combined into a small central feeding conveying system or used alone blower station and a suction hopper for transportation of raw materials.
Efficient automated operation
Quickly and clean will plastic raw materials are sent to the molding machine hopper, drying equipment, and storage silo, timely and accurate plastic raw materials transported to the designated location, can ensure the continuous production process.
To avoid the lack of material caused by production, production workshop without raw materials scattered phenomenon, improve the work site clean and safety hazards, while eliminating the need for human resources.
Humanization of cleaning and maintenance
With a separate filter body, clean up the convenient and effective reduction of dust blocking high-pressure fan, reduce the load of the wind turbine.
Stainless steel hopper and hopper filter design, clean and convenient, avoid the two pollutions of raw materials.
Model | SV-X300G | |
Voltage | 220V 50Hz/60hz 1Phase | |
Type | Carbon brush | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 300 |
Lift | M | 3.5 |
Capacity | L | 7.5 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 390 |
W/mm | 390 | |
H/mm | 590 | |
Weight | kg | 12 |
Model | SV-X800G | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 450 |
Lift | M | 4 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 420 |
W/mm | 460 | |
H/mm | 700 | |
Weight | kg | 57 |
Model | SV-X800G2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 590 |
Lift | M | 5 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 500 |
W/mm | 400 | |
H/mm | 720 | |
Weight | kg | 76 |
Model | SV-X900G | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.12 |
Transmission capacity | kg/h | 450 |
Lift | M | 4 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 55 |
Model | SV-X900G2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 500 |
Lift | M | 4 |
Capacity | L | 24 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 58 |
Model | SV-X900G3 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 2.24 |
Transmission capacity | kg/h | 590 |
Lift | M | 5 |
Capacity | L | 12 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 540 |
W/mm | 560 | |
H/mm | 1230 | |
Weight | kg | 66 |
Model | SV-X900G5 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 3.73 |
Transmission capacity | kg/h | 820 |
Lift | M | 5 |
Capacity | L | 24 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 540 |
W/mm | 620 | |
H/mm | 1230 | |
Weight | kg | 89 |
Model | SV-X900G7.5 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 5.6 |
Transmission capacity | kg/h | 960 |
Lift | M | 5 |
Capacity | L | 51 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 580 |
W/mm | 600 | |
H/mm | 1600 | |
Weight | kg | 93 |
Model | SV-X900G10 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 7.5 |
Transmission capacity | kg/h | 1300 |
Lift | M | 5 |
Capacity | L | 51 |
Pipe diameter | Φmm | 50 |
Size | L/mm | 580 |
W/mm | 600 | |
H/mm | 1600 | |
Weight | kg | 101 |
Model | SV-X900G2-2 | |
Voltage | 380V 50Hz 3Phase | |
Type | Induction | |
Power | KW | 1.5 |
Transmission capacity | kg/h | 500 |
Lift | M | 4 |
Capacity | L | 12×2 |
Pipe diameter | Φmm | 38 |
Size | L/mm | 510 |
W/mm | 370 | |
H/mm | 670 | |
Weight | kg | 61 |
