Color masterbatch mixer/ Volumetric dosers :
Volumetric dosers are suitable for auto proportional mixing of the virgin, regrinds, masterbatch and additives for injection, extrusion or blow molding machines.
A stepper motor is used in this series, according to the set mixing proportion, the microprocessor accurately controls the rotation of the high precise dosing screw to squeeze out the materials with an accuracy of +/-1%.
The unit can be connected with molding machines and work synchronously to ensure the stability of the products.
APPLICATION
• Suitable for automatic proportional mixing of new materials, recycled granulation, color masterbatch or additives.
MOLDE FEATURES
● Everlasting data memorizer and settings storage.
● Use brushless DC motor and free from maintenance.
● Microprocessor control, intelligent and accutate in calculation.
● External signals can be directly interfaced with the control box.
● Dosing screws are chrome plated for durability.
● Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.

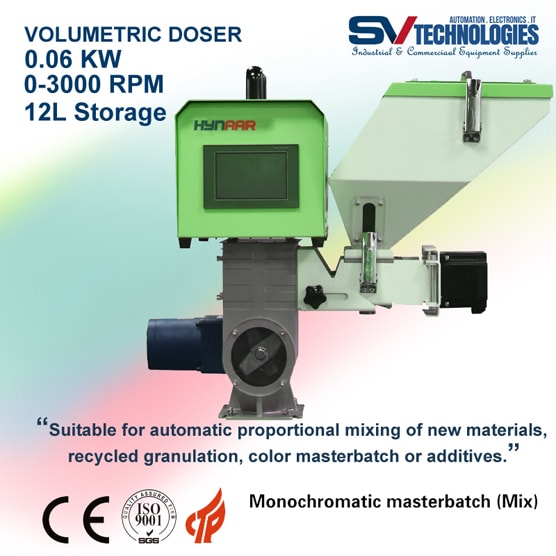

● Three-tubes hopper magnet is equipped at the base of the single color doser to absorb metal impurities so to prevent the screw of moulding machine from damage.
● Single color doser takes base blender as an option to make blending more evently.

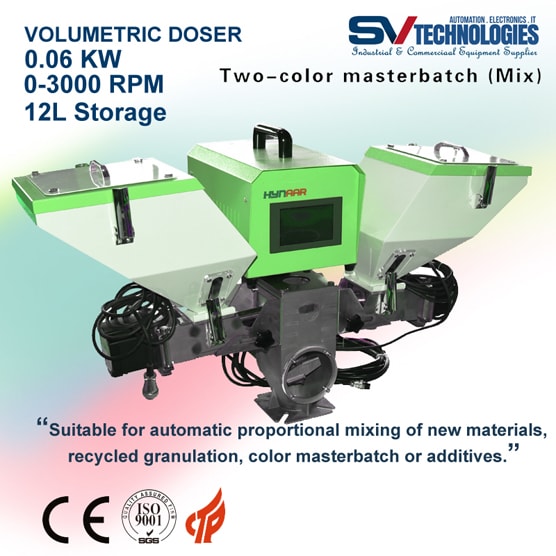

● Blender built-in a standard accessory for double color doser and it can meet client's need for double blending.
● Main material hopper is a standard accessory for double color doser. It is optional for single color doser.
WORKING PRINCIPLE
• According to the predefined addition of proportional parameters, through the conditions set by the all-digital computer control system automatically converted to the speed directly drive precision screw extrusion raw materials,its error value is not higher than 1%.
Different output of 0.1 to 100 kg per hour is available for customers to choose from
Features
Modular design and standard components for easy cleaning and changing of the parts.
Stepping drive motor to ensure high accuracy and wide output range.
Can store and read up to 50 recipes for a quick start of the operation.
Dosing screws are chrome plated for durability.
Adopt a microprocessor, easy to operate.
Models for more than 2 additives can also be available.
Optional accessories
Stainless main material hopper
Level sensor in dosing hopper.
Double screw and bridge broken device for powder material.
PLC plus touch screen control
Mixing base(It is standard for double color doser, but optional for single color doser)
304 Stainless Steel Screw
The screw is made of 304 stainless steel and chrome plated. The specification is 12mm / 14mm / 16mm / 20mm / 30mm
PLC Controller
1. Can quickly start the machine and accurately measure the color masterbatch and adding proportion, meanwhile, it can store 50 sets of formula and turning Change formula, accurate measurement of additives column
2. Full range of metering color machine, all adopt high precision hybrid stepping motor, accurate metering, and wide output range
Transparent Visual Window
1. There is a window on the side of the hopper base to observe the loading of raw materials
2.Mixing base with a transparent window, built-in stainless steel mixing knife, easy to observe the mixing of raw materials and color master
Detachable Structure
The color master metering part is a modular and detachable structure design, which can be quickly removed and replaced with an internal screw and sleeve. The metering part can be removed from the base as a whole without leakage
